Weld Fittings
Weld fittings provide butt-weld and socket-weld connection options. Specify tube or pipe dimensions, material and end preparation to match the installation drawing.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Butt-weld end reference | ASME B16.25 |
| Socket-weld reference | ASME B16.11 |

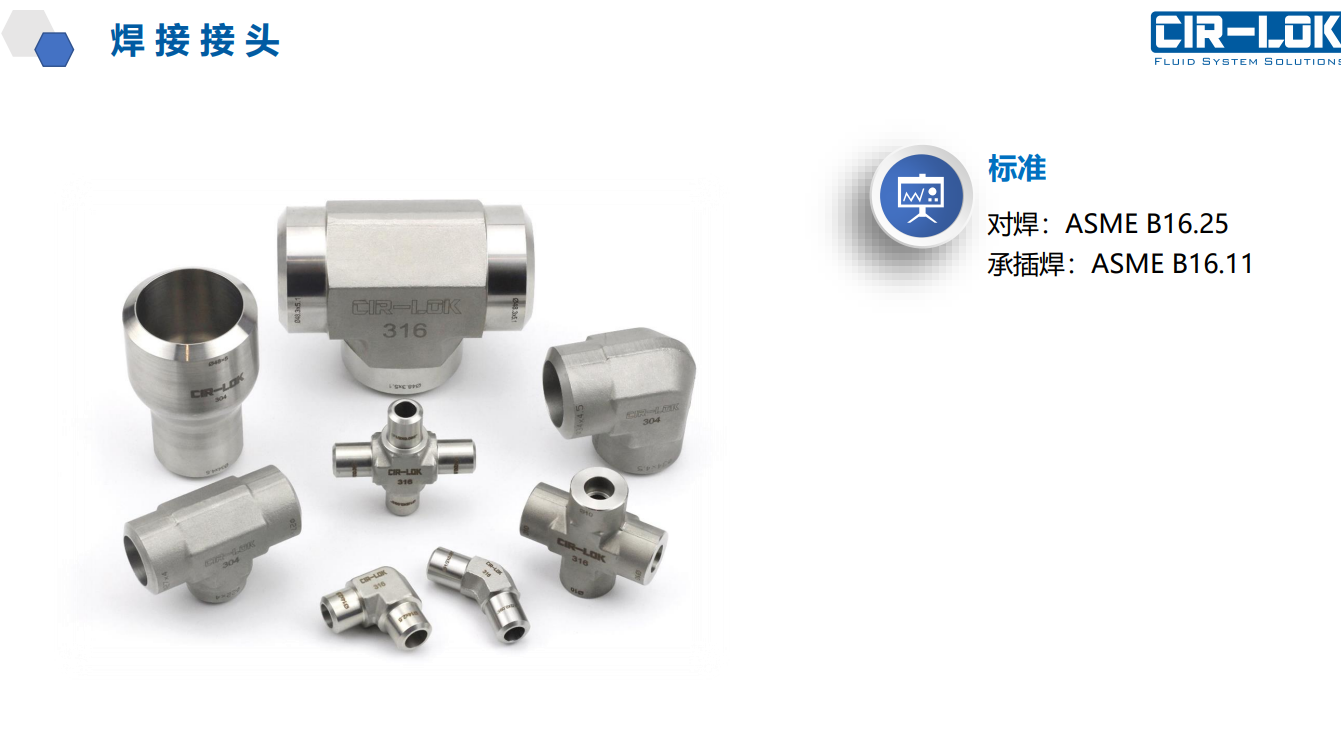

| Shapes shown | Straight connectors, elbows, tees and crosses |
| Pressure and dimensions | Confirm for the exact part and connected pipe/tube |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections
Open the image to view the reference sheet at full size.
