Fittings Overview
The tube fitting overview lists imperial and metric sizes and several material families. Match tubing dimensions and material to the complete fitting specification before quotation.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Imperial sizes listed | 1/16, 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2, 2 in |
| Metric sizes listed | 3, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 38 mm |
| Material families listed | 316 stainless steel, 2507, titanium, Hastelloy, Inconel and Monel alloys, aluminium |
| Other-brand replacement | Reviewed against dimensions, materials and service conditions; interchangeability is not assumed |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections

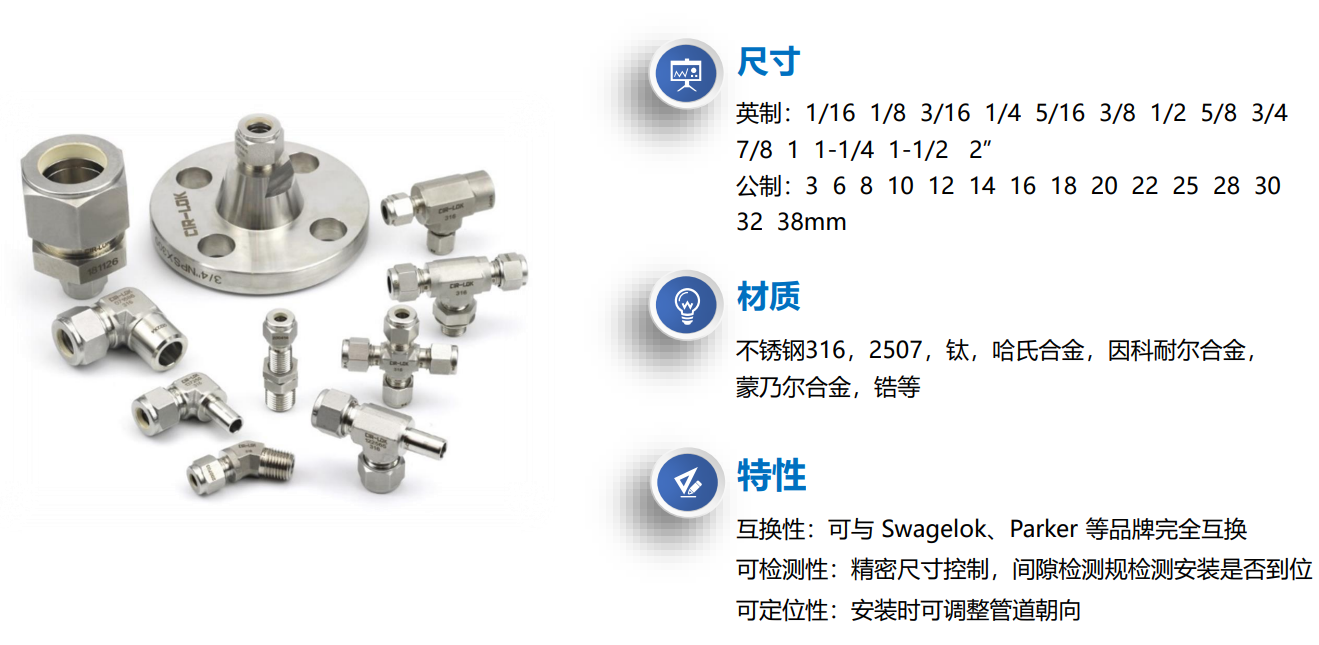

Open the image to view the reference sheet at full size.
