Threaded Fittings
Threaded fittings are available with tapered and straight thread systems. Thread form, sealing method and mating dimensions must be specified together.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Tapered threads listed | NPT — ASME B1.20.1; BSPT — ISO 7 |
| Straight threads listed | G — ISO 228; SAE, JIC and metric options |
| Metric thread reference listed | GB/T 196 |
| Sealing approach | Tapered-thread sealants or straight-thread gaskets/O-rings, according to the selected design |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections

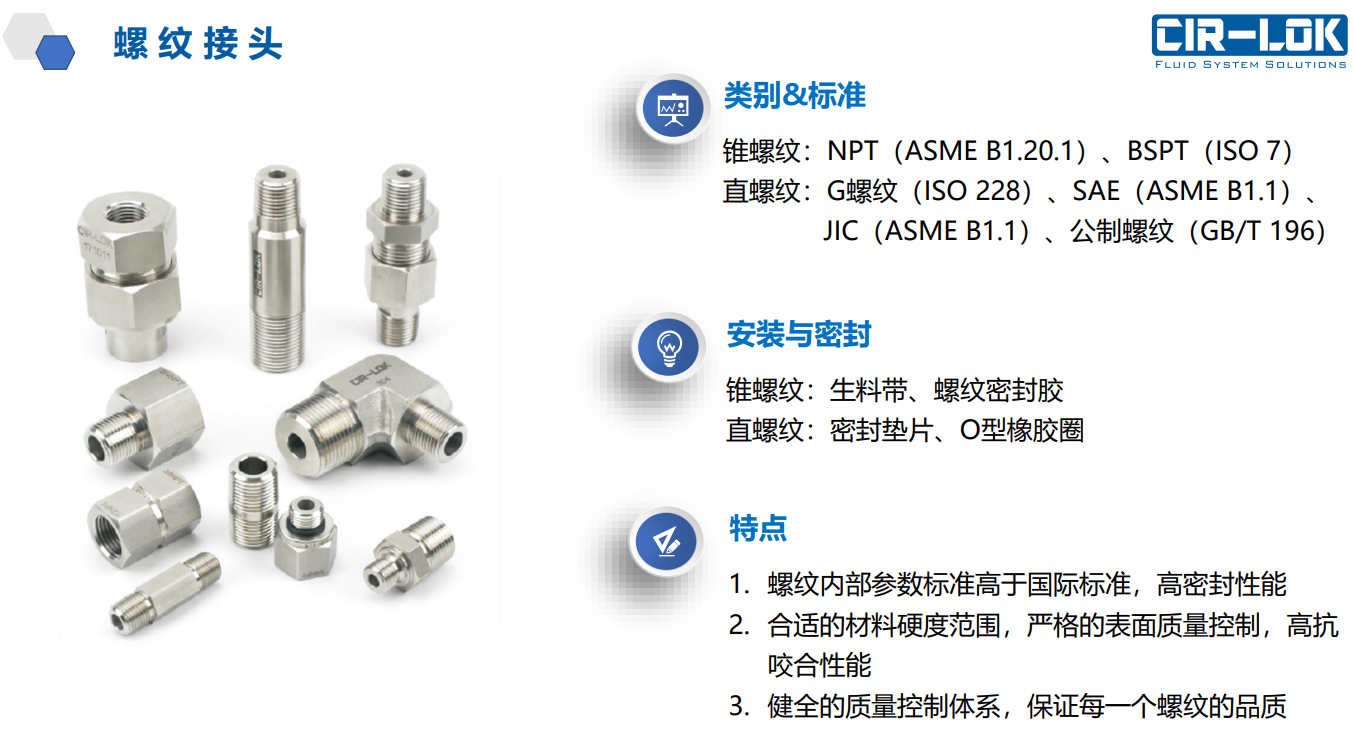

Open the image to view the reference sheet at full size.
