Other Fittings
Specialty fittings include vent protectors, dielectric fittings and chromatography connections. Each design has a different purpose and must be selected with its own operating limits.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Vent protector | 40-mesh screen |
| Dielectric fitting pressure | Maximum working pressure 5,000 psi, as listed |
| Dielectric fitting temperature | −40 to 93 °C |
| Dielectric resistance listed | 10 × 10⁶ Ω at 10 V and 20 °C |
| Chromatography fittings | Low-volume and zero-volume designs; filtration options |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections

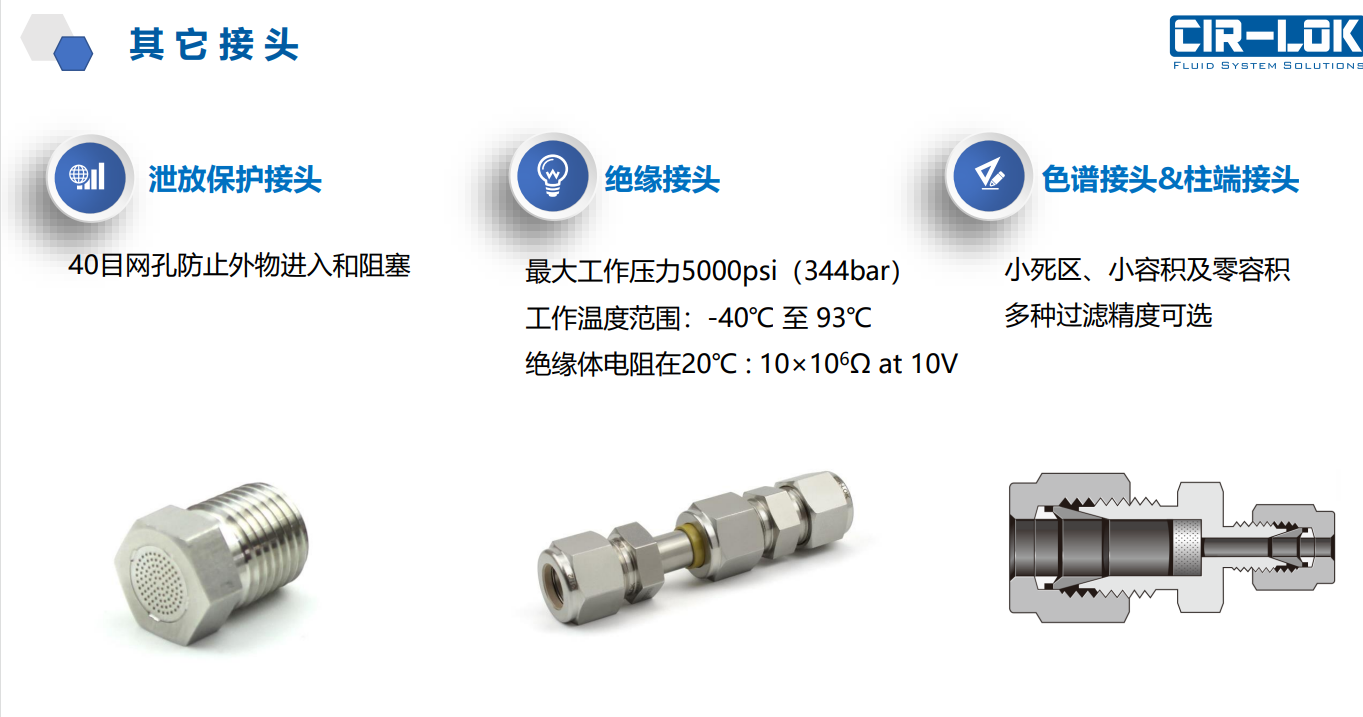

Open the image to view the reference sheet at full size.
