Isolation & Bleed Valves
Isolation and bleed valve assemblies combine process isolation and venting in a compact body. Select the flow arrangement, connection and materials against the instrument installation.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Catalogue maximum working pressure | 10,000 psig |
| Catalogue temperature range | −23 to 648 °C |
| Body design | Integrated body |
| Flange standards listed | ASME B16.5, HG/T 20615, HG/T 20592, EN 1092-1 |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Manifolds & Isolation Valves

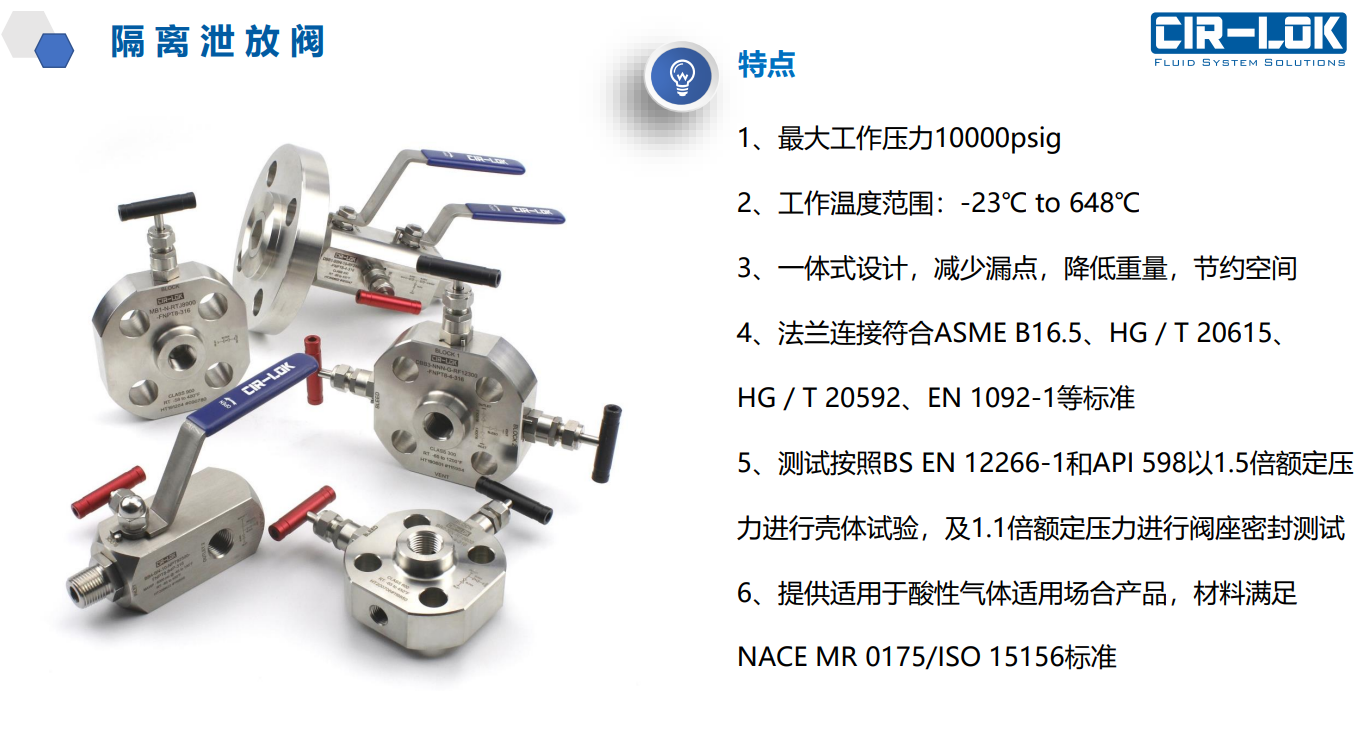

Open the image to view the reference sheet at full size.
