Filters
Instrumentation filters are offered as tee, inline and fully welded inline designs. Specify the required element grade, pressure, material and service access when choosing a filter.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| F1 | Tee filter; maximum working pressure 6,000 psig; element replacement without removing body |
| F2 | Inline filter; maximum working pressure 3,000 psig |
| F3 | Fully welded inline filter; maximum working pressure 6,000 psig |
| Element codes listed | S05, S2, S7, S15, S40, S60, S90; T100, T150, T250, T450 |
| Element selection | Confirm grade and filtration specification in the series data sheet |

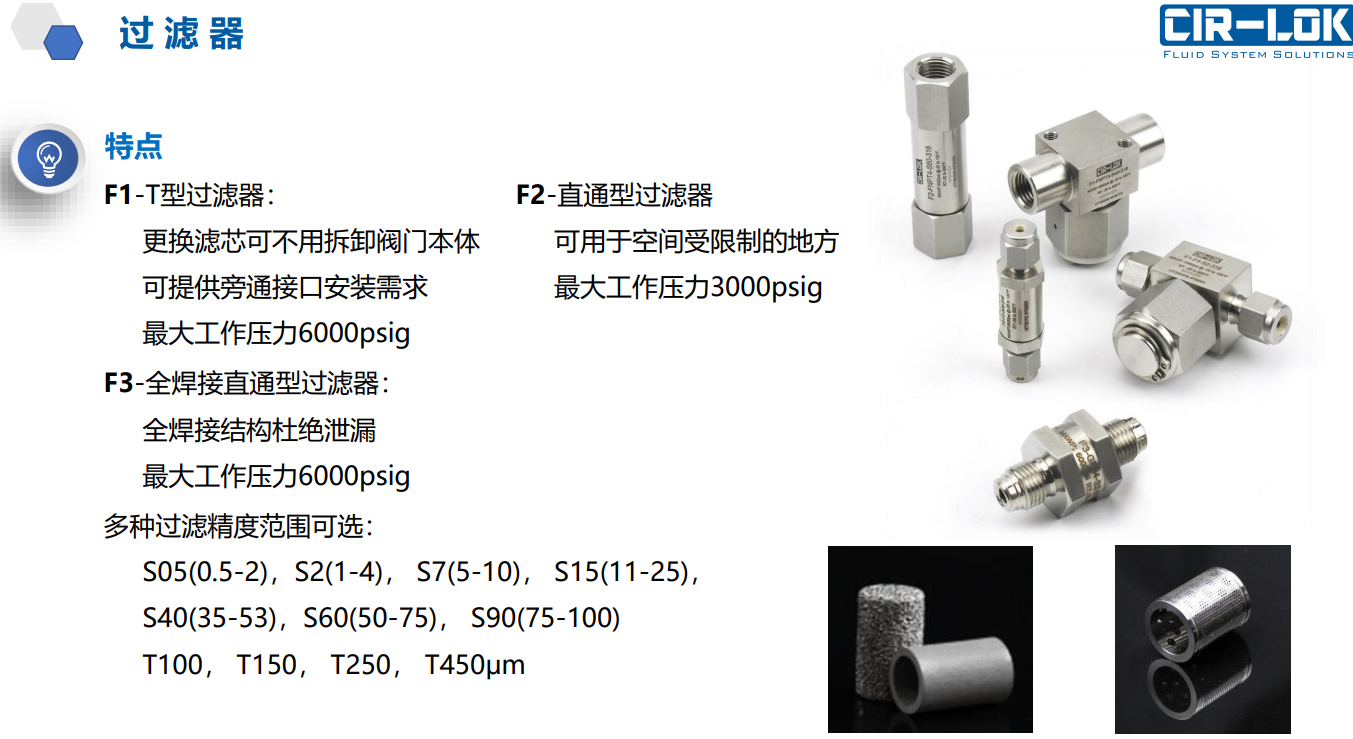

Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Pressure Control & Filtration
Open the image to view the reference sheet at full size.
