2, 3 & 5 Valve Manifolds
Two-, three- and five-valve manifolds support pressure gauges, pressure transmitters and differential-pressure transmitters. Match the manifold arrangement to the instrument interface and isolation requirements.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Configurations | 2, 3 and 5 valves |
| Catalogue maximum working pressure | 6,000 psig |
| Catalogue temperature range | −54 to 648 °C |
| Instrument flange references | MSS SP-99 / IEC 61518 |
| Design | One-piece body; two-piece stem design |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Manifolds & Isolation Valves

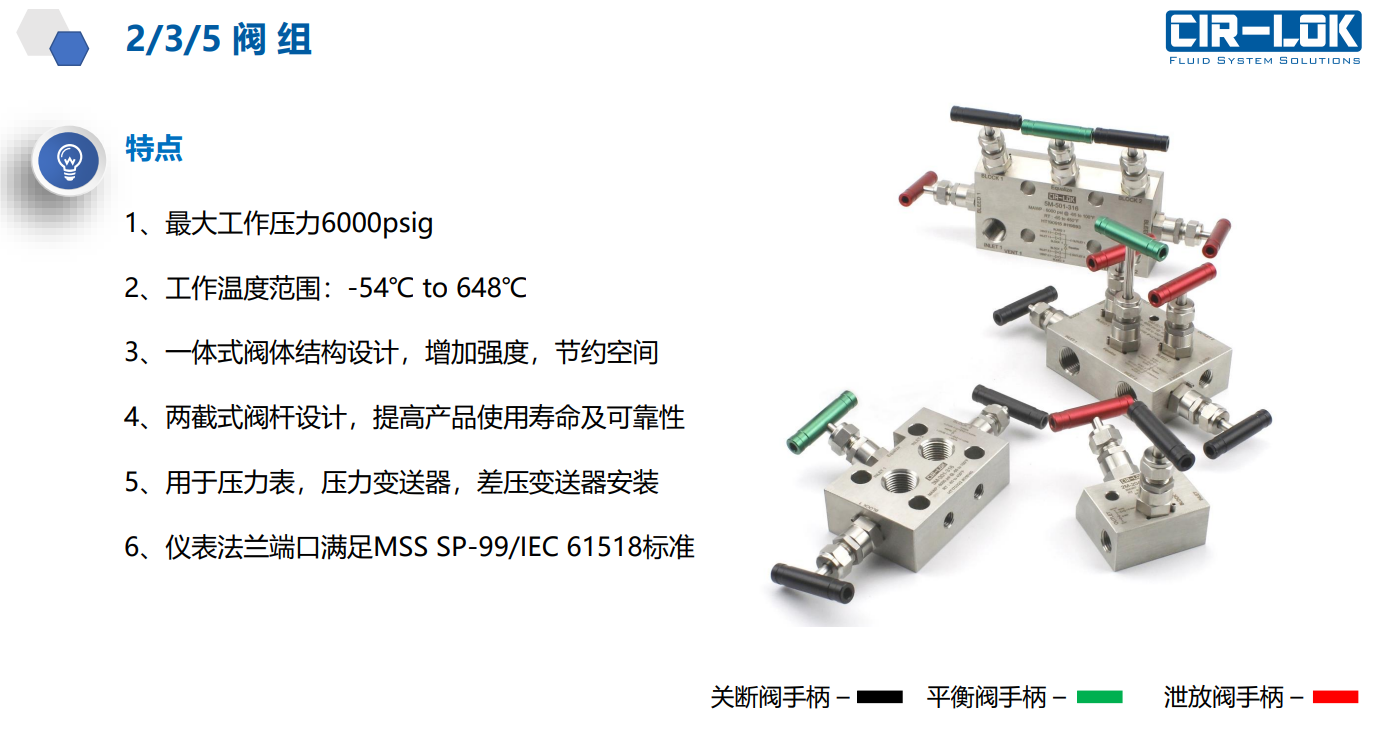

Open the image to view the reference sheet at full size.
