Instrument Tubing & Pipe
Instrument tubing and pipe are specified using different dimensional conventions. State the required material, dimensions and product standard rather than substituting a nominal pipe size for a tube outside diameter.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Tubing standards listed | ASTM A269 / ASTM A213 |
| Pipe standard listed | ASTM A312 |
| Tubing designation | Outside diameter and wall thickness |
| Pipe designation | NPS and schedule |
| Tube condition listed | Annealed; hardness not exceeding HRB 85 in the supplied reference |
| Dimensional tolerances | Confirm applicable standard, size and ordered specification |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections

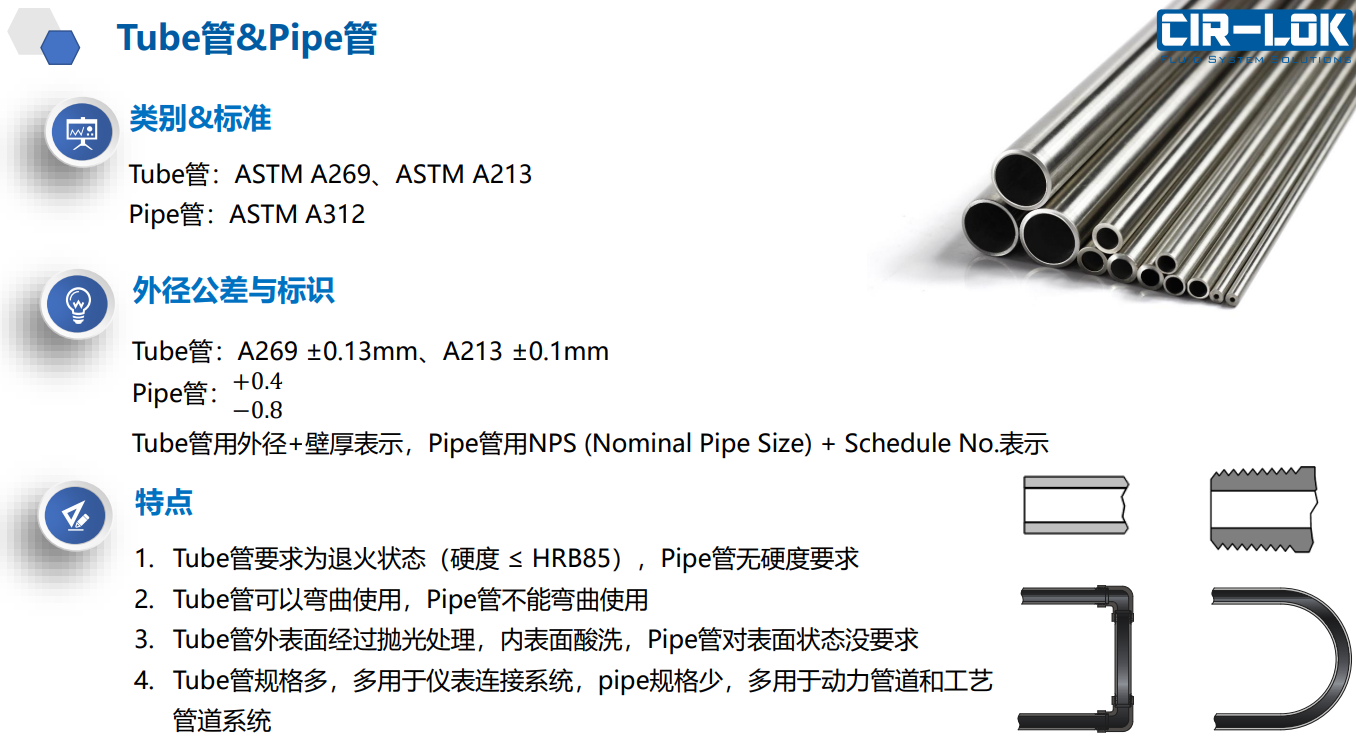

Open the image to view the reference sheet at full size.
