Globe Valves
The globe valve reference shows a 65° Y-pattern design with a forged body and bonnet arrangement. The pressure designation is a class, not a pressure value in psi.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Catalogue pressure designation | Class 4500; do not interpret as 4,500 psi |
| Catalogue temperature range | −28 to 676 °C |
| Flow-path design | 65° Y-pattern |
| Stem guidance | Upper and lower guidance |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Instrumentation Valves

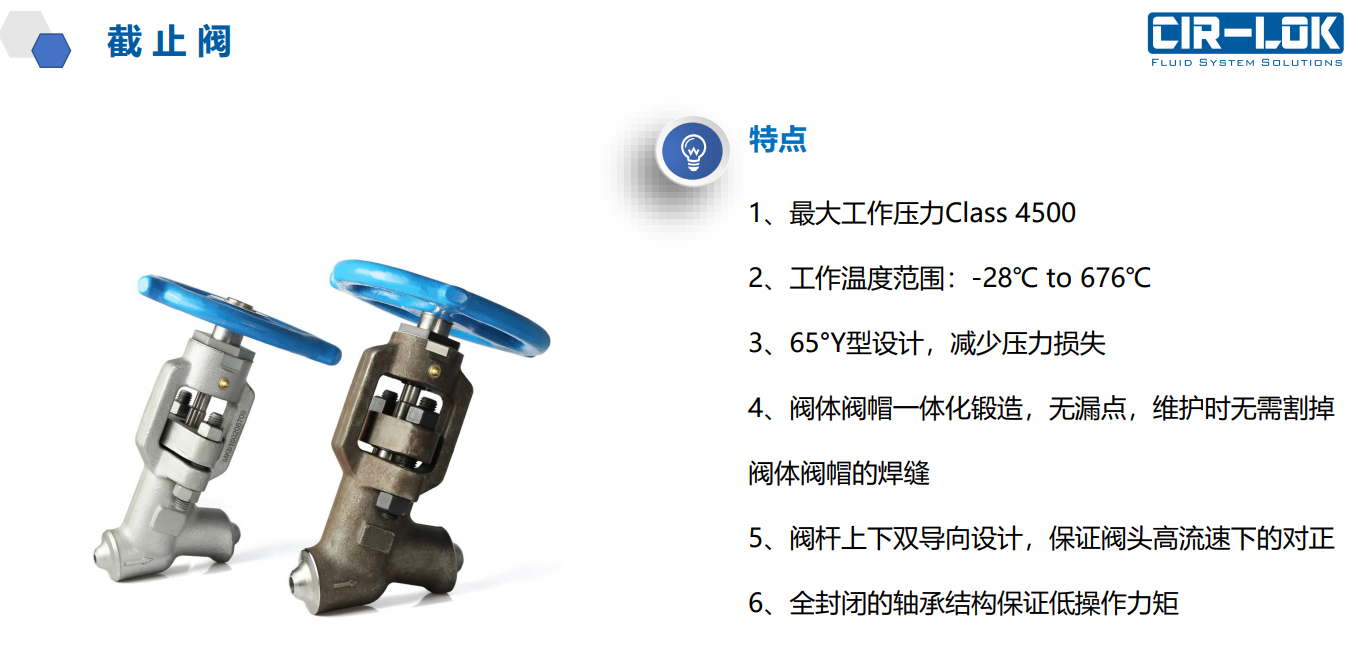

Open the image to view the reference sheet at full size.
