Double Ferrule Fittings

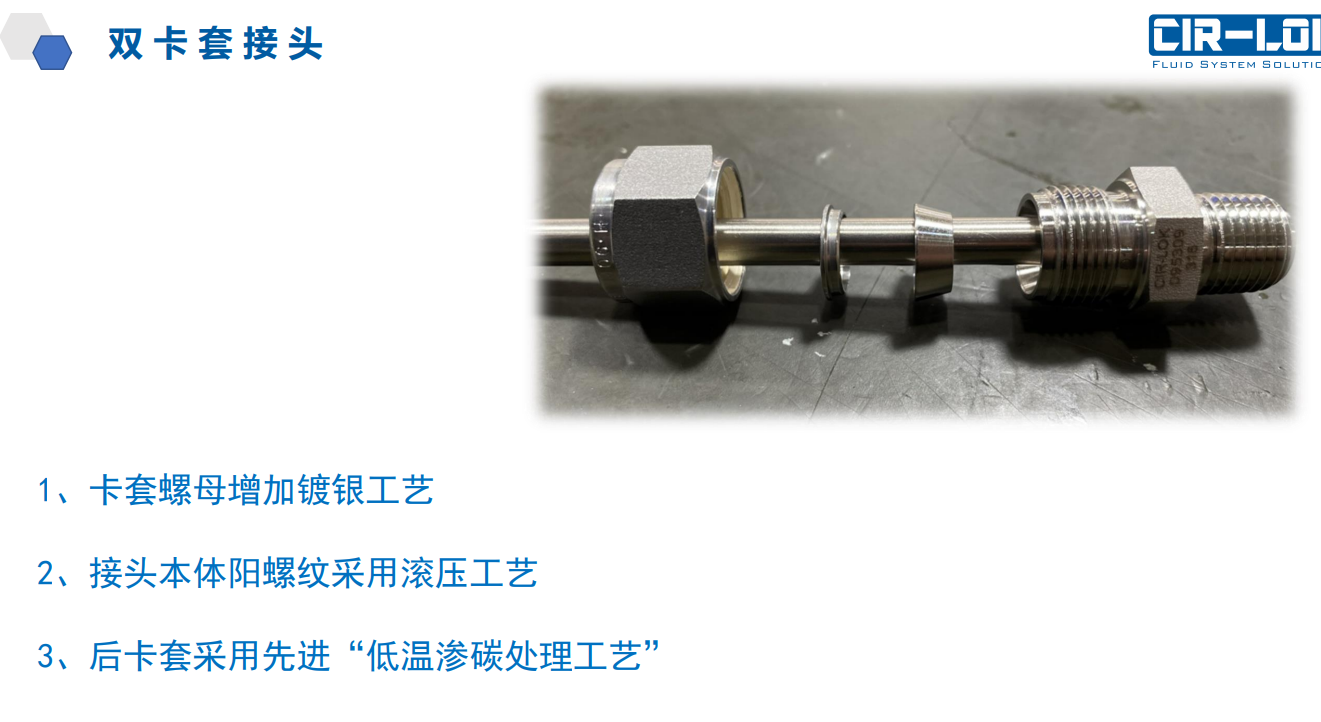

Double ferrule tube fittings use front and back ferrules to connect instrument tubing. The supplied manufacturing reference describes nut plating, rolled male threads and back-ferrule treatment.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| Ferrule nut treatment | Silver plating |
| Body male threads | Roll-formed |
| Back ferrule treatment | Low-temperature carburizing |
| Selection requirements | Tube outside diameter, wall thickness, material and mating connection |
| Working pressure | Confirm for the exact fitting and tubing combination |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Tube Fittings & Connections
Open the image to view the reference sheet at full size.
