Ball Valves
BV-series ball valves cover general-purpose, high-pressure, metal-seated and cryogenic designs. Flow path and seat construction vary by series; do not apply one series rating to the full range.
Catalogue specifications & selection data
| Series / item | Manufacturer reference data |
|---|---|
| BV1 | Maximum working pressure 6,000 psi; forged body, replaceable seal components |
| BV2 | 3,000 psi; forged body; straight, angle, three-way and multi-way versions |
| BV3 | 1,500 psi; bar-stock body |
| BV4 | 10,000 psi; bar-stock body |
| BV5 | 1,000 psi; cast body |
| BV6 | 3,000 psi; cast body |
| BV7 | 10,000 psi; forged body, spring-compensated seats |
| BV8 | Metal-seated, HVOF coating; catalogue temperature up to 815 °C; pressure not stated here |
| BV9 | Extended-stem cryogenic design; catalogue minimum temperature −196 °C; pressure not stated here |
Source: supplied CIR-LOK / Sailuoke reference sheet. Values are catalogue limits for the named series or configuration, not a combined operating envelope. Pressure capability depends on material, size, seal and temperature. Confirm the exact part and pressure–temperature rating before ordering.
View original manufacturer reference · Browse Instrumentation Valves

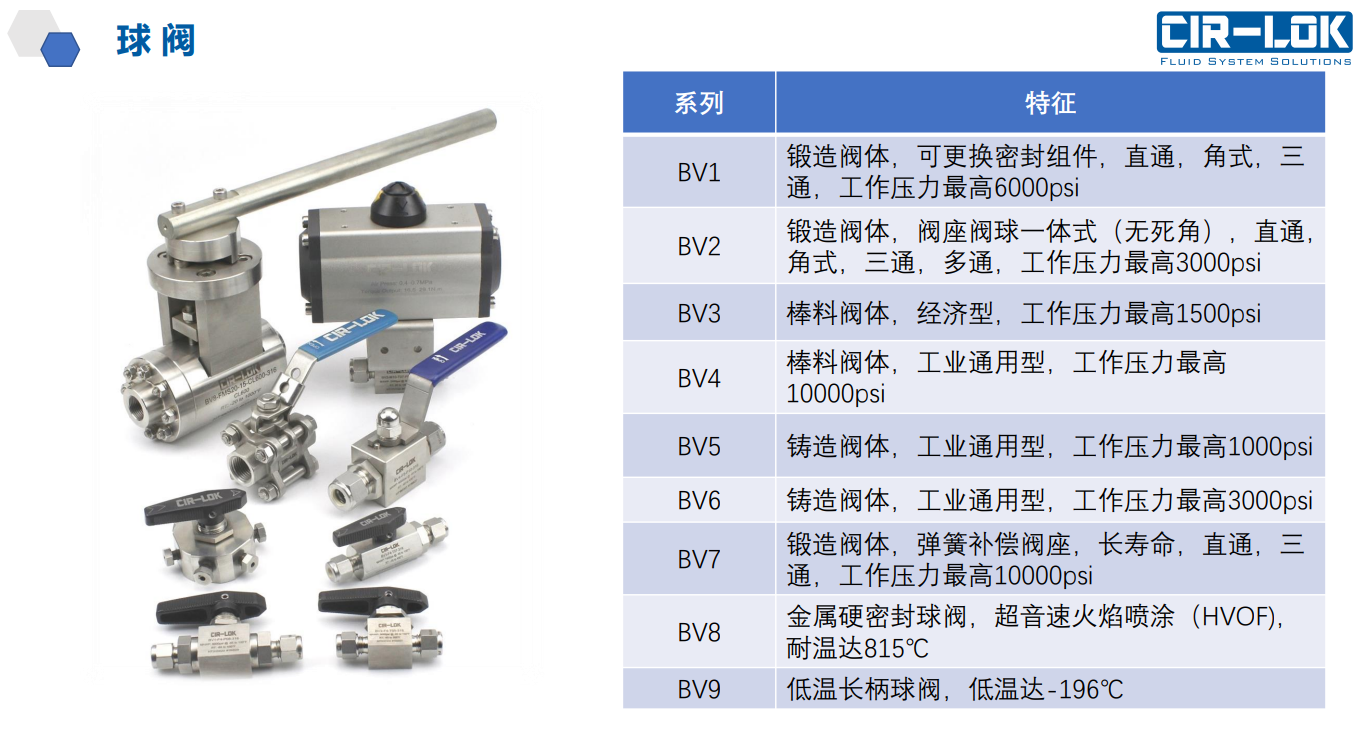

Open the image to view the reference sheet at full size.
